Generator Key Start Controller DSE 701

  • >=1 Pieces
    $30.00
Model Number:
701
Shipping:
Support Express · Sea freight · Land freight · Air freight
Lead Time:
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 Negotiable
Customization:
Graphic customization (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Customized logo (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Chongqing, China
Brand Name:
yokden
Weight:
0.3kg
Color:
Black
OEM:
Yes
In stock:
Yes
Selling Units:
Single item
Single package size::
13X14X12 cm
Single gross weight:
2.0 kg
Package Type:
In cartons
Supply Ability
Supply Ability:
10000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
In cartons for generator controller 701
Port
any port
Lead Time :
Quantity(Pieces) 1 - 1 >1
Est. Time(days) 7 To be negotiated
Product Description

DSE Key Start Generator Control Module 701


Product Application

The Model 701 is a Manual Engine Control Module designed to control the engine via a key switch and pushbuttons on the front panel. The module is used to start and stop the engine and indicate fault conditions,automatically shutting down the engine and indicating the engine failure by LED, giving true, first-up fault annunciation.


Main Features

Specification
DC Supply
8 to 35 V Continuous
Cranking Dropouts
Able to survive voltage dips during cranking, This is achieved without the need for internal batteries.
Alternator Input Range
15 - 305 V AC RMS (+20%)
Alternator Input Frequency
50 - 60 Hz at rated engine speed.(Minimum 75V AC)
Overspeed
nominal frequency +14%(+24% Overshoot)
Start Output
Solid State 1.2A negative grounding terminal
Run Output
Solid State 1.2A negative grounding terminal
Pre-heat Output
Solid State1.2A negative grounding terminal

Dimensions
72mm X 72mm X 38mm
((2.83" x 2.83" x 2.5") (Excluding Keyswitch) Cut-out 68mm x 68mm (2.68" x 2.68")
Operating Temperature Range
-30 to +70°C

Installation:
Front panel mounting via suitable cutout.Retaining clips supplied. Cable connections via screw clamp typeterminals

Caliration:
Speed trip setting switch accessible from rear of module.
Replacement for DSE701
Gross Weight: 0.3kg

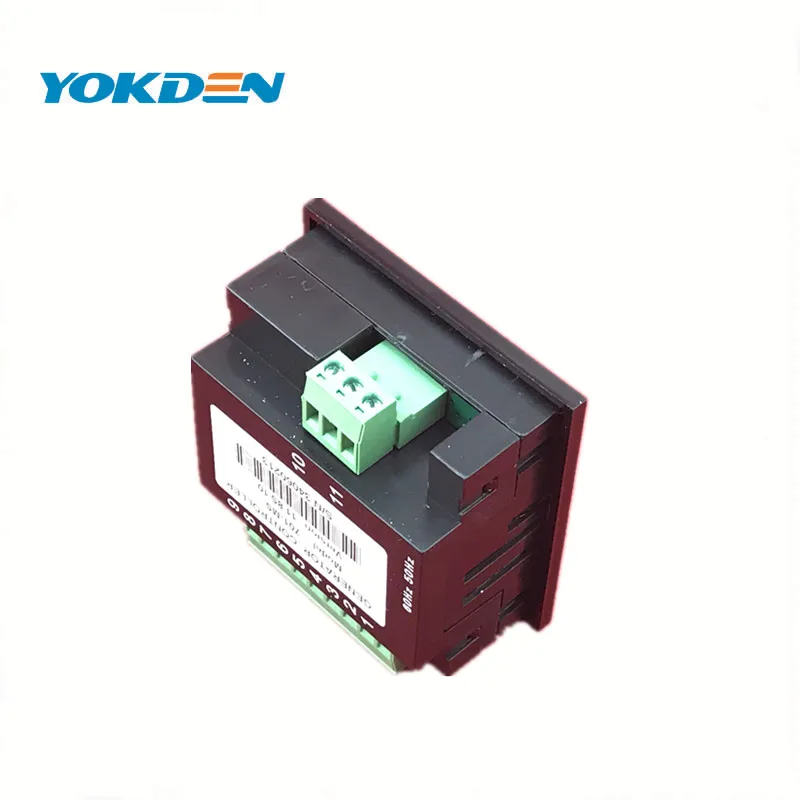

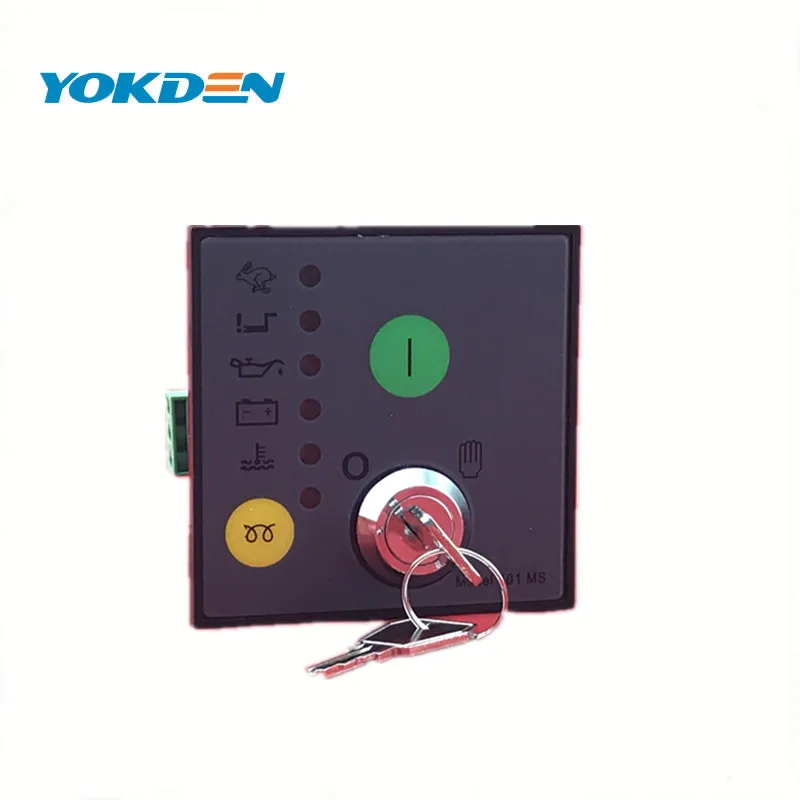

Detailed Images
More Porducts
Our Factory
Patent &Certificate
Why Choose US

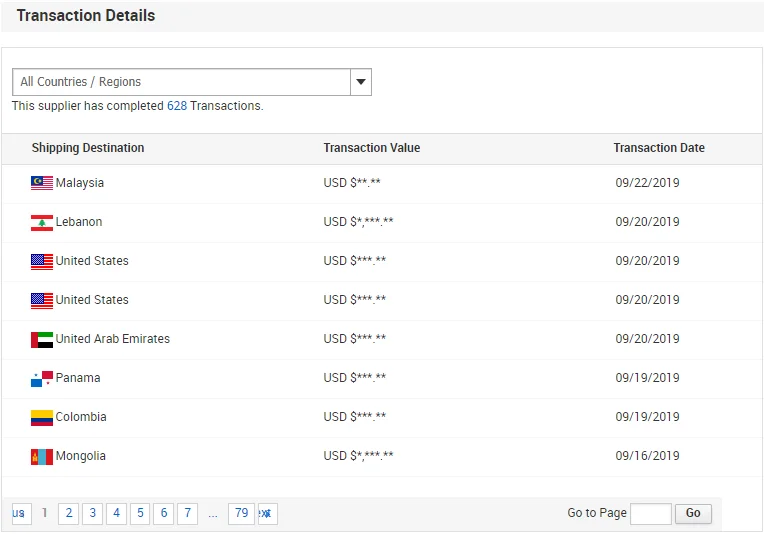

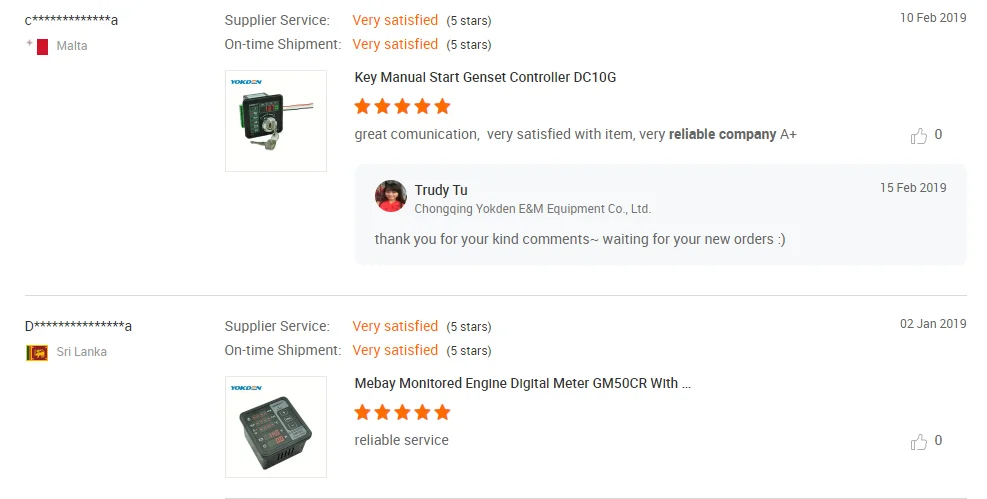

Real Transactions and Five Star comments
